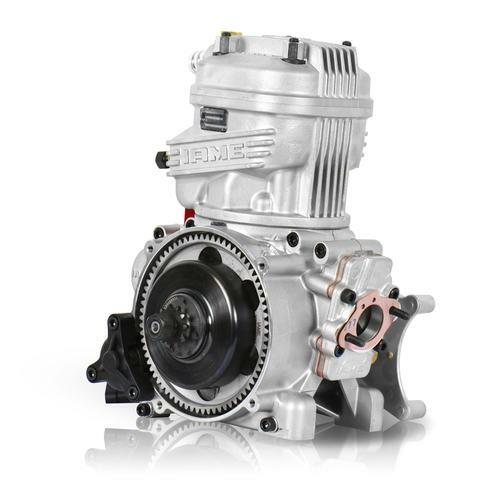

X30 TaG COMPLETE ENGINE

The best selling X30 is the most successful blend of innovation and tradition. Offering modern features such as an electric starter, balancer shaft and water-cooling, while preserving traditional specifications that include the diaphragm carburetor and the absence of the power valve. The result: an engine that is fun to drive, easy to use and long lasting. Pure karting!

• Model: 30 125cc Junior – Spec- UK/USA
• Description: Single cylinder – 2 stroke
• Class: 125cc Stock Class
• Bore: Ø 54,00mm
• Max-Bore: Ø 54,28mm
• Stroke: 54,00mm
• Displacement: 123,67cc
• Ports: 3
• Inlet-System: Reed Valve
• Lubrication: Oil mixture
• Ignition-System: Digital
• Transmission: Centrifugal Dry Clutch
• Cooling-System: Water
• Balancer-Shaft: Present
• Starter: Electric
• Carb-Model: Tillotson HW-27A
• Max-Power: 21 Hp
• Max-Torque: 11 Nm
• Max-RPM-Limit: 16.000
