Odenthal EZ Set Mount
EZ Set line of two-piece adjustable motors mounts.
Features Include:
-
Precise and easy chain adjustments
-
Isolates chassis flex from the motor case
-
Quick and easy motor swaps
-
Base clamps to frame rails, upper mount locks and bolts to base.
Odenthal motor mounts are designed to exacting standards for proper fit and performance. All mounts are CNC machined from high-quality billet aluminum and anodized black.
EZ Set motor mounts have a dual bolt pattern. Fits IAME, Rotax, Comer, HPV, PCR, and more. Comes with base plate, upper mount, and 4 motor mounting bolts.

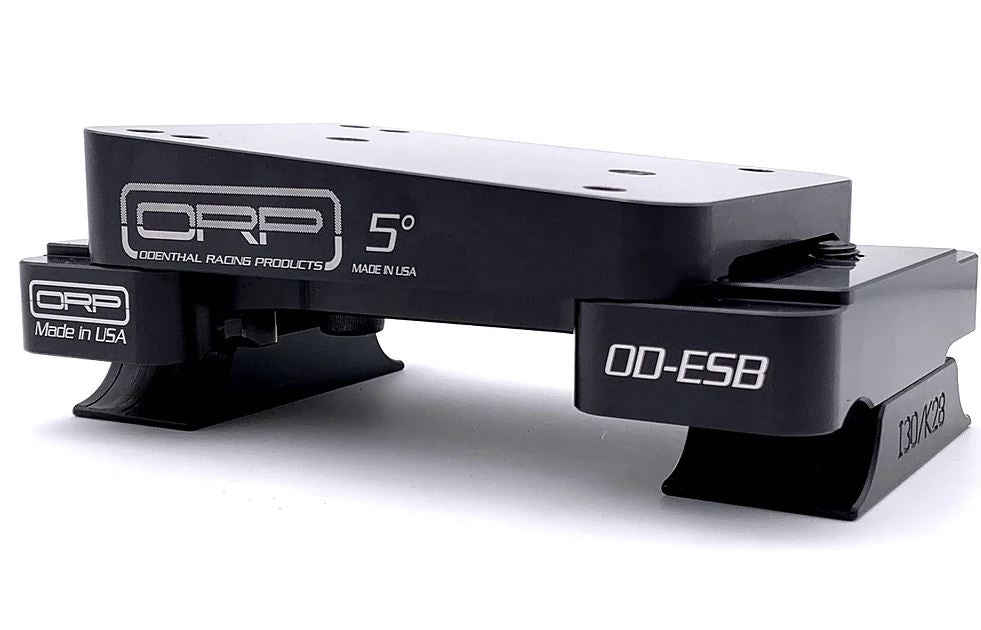

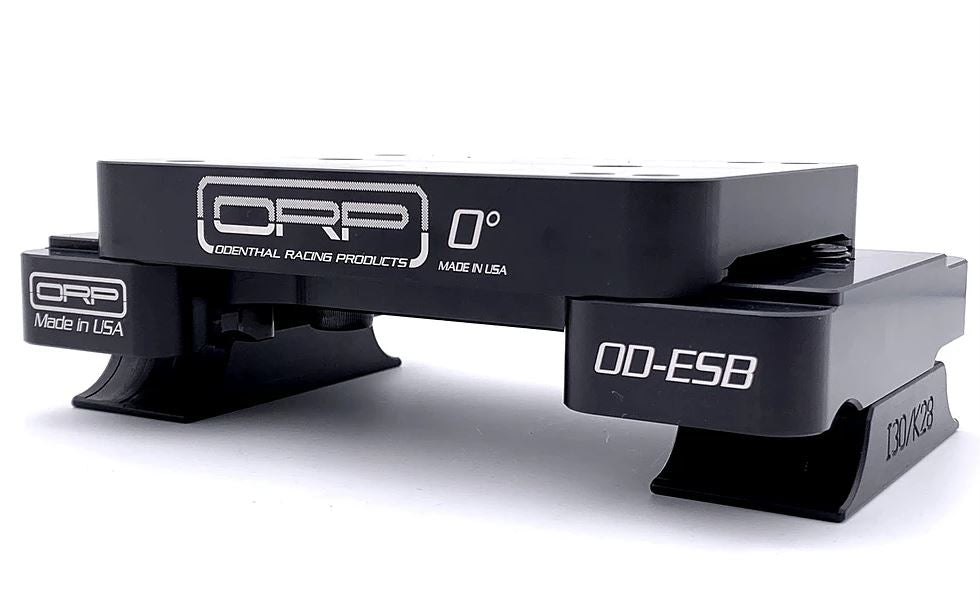

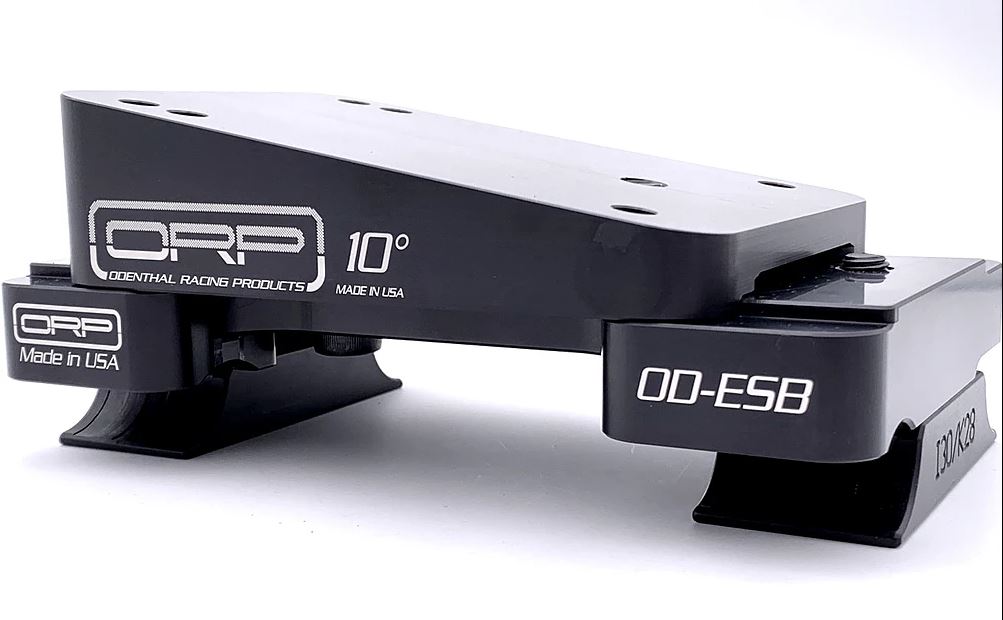

These plates comes in 3 styles: 0 Degree, 5 Degree, and 10 Degree
Note: 10 Degree is recommended for Rotax , 5 degree is recommended for all others. This is just a recommendation, for instance some people will use the 10 degree on a Leopard to get more chain guard clearance, but this will effect your exhaust mounting angle.
To determine what size clamp a particular chassis needs, please measure with a caliper using this procedure: First, measure frame rail diameter, then measure total distance outside to outside where the motor will go and subtract the rail diameter from this number. (Example: 122-30=92mm center to center).
